MSP430G2553IPW28R

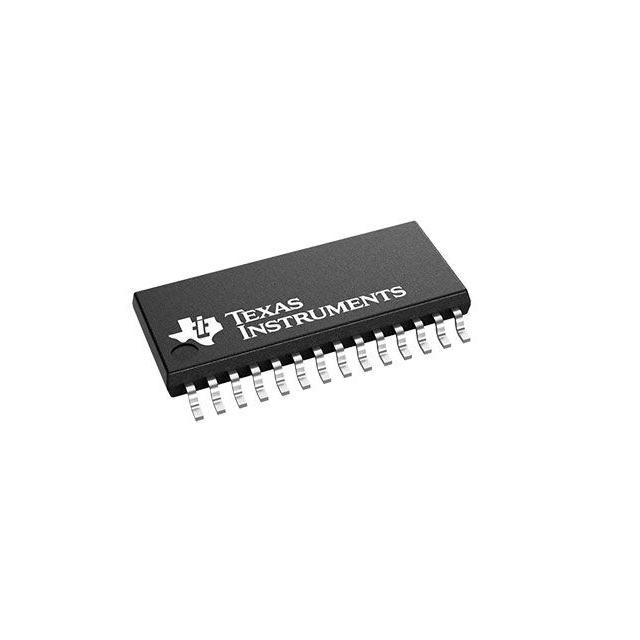

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | MSP430G2553IPW28R |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description |
The MSP430G2553IPW28R is a high-performance 16-bit ultra-low-power mixed-signal microcontroller manufactured by Texas Instruments (TI). Part of the MSP430G2xx family, this device combines a 16MHz RISC processor, integrated analog peripherals, and flexible communication interfaces for energy-efficient embedded applications. Its compact TSSOP-28 surface-mount package is suitable for battery-powered electronics, sensor interfaces, and industrial control systems. The Texas Instruments MSP430G2553IPW28R features a 16MHz maximum CPU frequency, 16KB Flash program memory, and 512 bytes of SRAM. It operates from a 1.8V to 3.6V supply voltage and provides up to 24 programmable GPIO pins. Integrated peripherals include an 8-channel 10-bit ADC, analog comparator, two 16-bit timers, and hardware UART, SPI, and I2C interfaces. Designed for ultra-low-power operation, the MSP430G2553 microcontroller consumes approximately 230µA in active mode at 1MHz, 0.5µA in standby mode, and 0.1µA in off mode with RAM retention under specified conditions. Five power-saving modes, fast wake-up capability, and internal calibrated oscillators help extend battery life. The device also supports capacitive-touch sensing, watchdog functionality, and Spy-Bi-Wire programming and debugging. The MSP430G2553IPW28R is supplied in a 28-pin TSSOP (PW) surface-mount package with a 4.40mm nominal body width and 0.65mm pin pitch. It operates over an industrial temperature range of -40°C to +85°C and is RoHS and REACH compliant. The manufacturer supplies this ordering variant in standard 2000-piece tape-and-reel packaging for automated SMT assembly. The Texas Instruments MSP430G2553IPW28R 16MHz 16-bit microcontroller is suitable for battery-powered embedded systems, portable measurement instruments, industrial automation, sensor monitoring, data acquisition, capacitive-touch interfaces, smart metering, low-power control circuits, and general-purpose microcontroller applications. |
| Product Group | Microcontroller |
| MOQ | 2000 pcs |
| SPQ | 2000 pcs |
| Figure/Case | TSSOP-28 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
