MPXM2051GST1

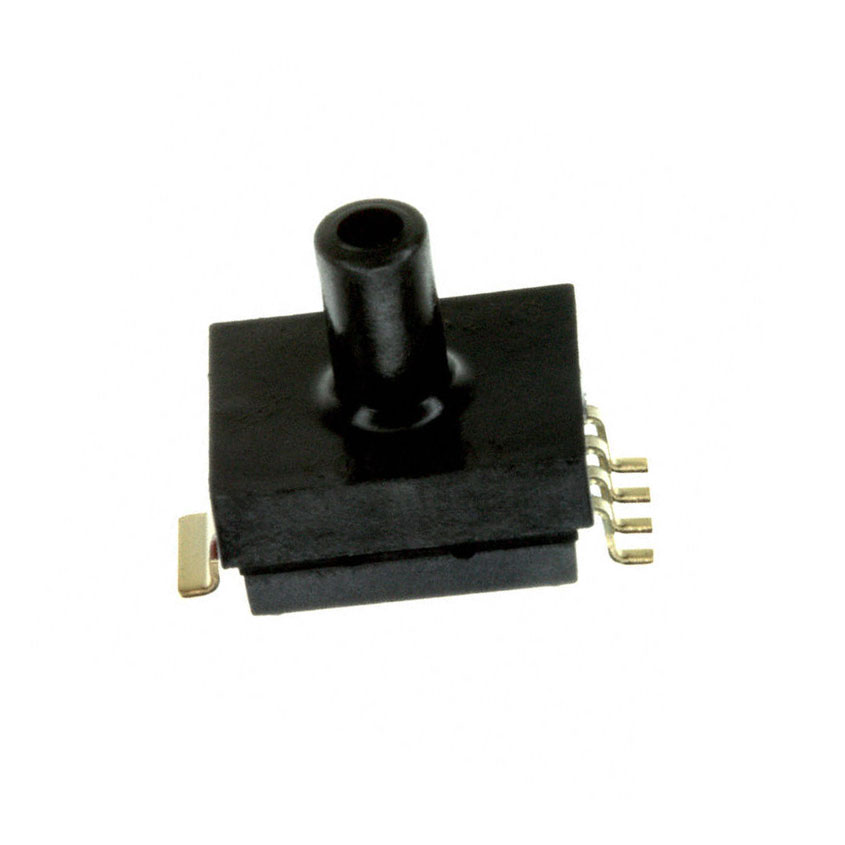

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | MPXM2051GST1 |
|---|---|
| Manufacturer |
 ST Microelectronics
|
| Description | The MPXM2051GST1 is a highly accurate silicon piezoresistive pressure sensor from NXP Semiconductors, designed to provide precise and stable pressure measurements for industrial, medical, and embedded sensing applications. The device integrates advanced sensing technology with on-chip signal conditioning to deliver a linear voltage output directly proportional to the applied pressure. This sensor measures pressure within a range of 0 kPa to 50 kPa and incorporates on-chip temperature compensation and calibration, ensuring reliable performance across varying environmental conditions. The factory-trimmed sensing element minimizes offset and sensitivity errors while improving long-term measurement stability. The MPXM2051GST1 utilizes a monolithic silicon diaphragm with integrated strain gauges and thin-film resistor networks. This construction enables highly accurate pressure detection while maintaining excellent repeatability and linearity throughout the operating range. Designed as a gauge pressure sensor, the device provides a ratiometric analog output that scales proportionally with supply voltage. This characteristic simplifies interfacing with analog-to-digital converters, microcontrollers, and data acquisition systems used in modern control and monitoring equipment. The integrated temperature compensation circuitry provides optimized performance over the 0°C to +85°C compensated temperature range. This feature helps maintain measurement accuracy without requiring extensive external calibration or compensation algorithms. Its compact MPAK surface-mount package enables efficient PCB integration in space-constrained designs while supporting automated assembly processes. The sensor is designed for use with clean, dry air and delivers dependable performance in applications requiring precise low-pressure measurement. The MPXM2051GST1 offers excellent linearity, low pressure hysteresis, and stable output characteristics, making it suitable for demanding sensing applications where measurement accuracy and reliability are critical. The MPXM2051GST1 is widely used in medical diagnostic equipment, respiratory monitoring systems, industrial automation, robotics, pressure control systems, pump and motor controllers, environmental monitoring equipment, laboratory instrumentation, HVAC systems, fluid level measurement devices, and precision pressure sensing applications. |
| Product Group | Pressure Sensor |
| MOQ | 400 pcs |
| SPQ | 400 pcs |
| Figure/Case | 5-MPAK Top Port |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
MPXM2051GST1
MPXM2051GST1
