BQ79616PAPRQ1

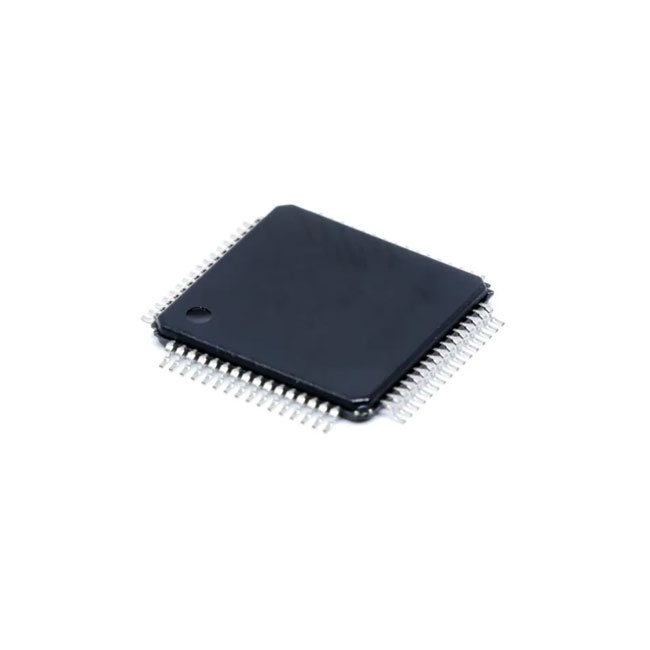

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | BQ79616PAPRQ1 |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description | The BQ79616PAPRQ1 is a highly integrated automotive battery monitor, balancer, and protection IC from Texas Instruments, specifically developed for advanced battery management systems used in electric vehicles, hybrid vehicles, and energy storage applications. Designed to support functional safety requirements, it provides precise battery monitoring and protection for high-voltage battery packs. This device supports monitoring of up to 16 series-connected battery cells and delivers highly accurate voltage measurements with ±1.5mV ADC accuracy. Fast measurement capability allows all cell voltages to be captured within 128µs, enabling rapid system diagnostics and improved battery management performance. The BQ79616PAPRQ1 integrates advanced cell balancing functionality with balancing currents up to 240mA. Built-in thermal management automatically pauses and resumes balancing operations when necessary, helping maintain safe operating conditions and extending battery life. Designed for safety-critical automotive applications, the device supports ISO 26262 functional safety architectures up to ASIL-D. Integrated diagnostic features, redundant measurement paths, fault monitoring functions, and hardware protection mechanisms help improve system reliability and support compliance with stringent automotive safety standards. The IC includes overvoltage, undervoltage, open-wire, temperature, and fault detection capabilities, providing comprehensive monitoring of battery pack health. Integrated digital filtering improves measurement stability and contributes to more accurate state-of-charge and state-of-health calculations. For scalable battery pack architectures, the BQ79616PAPRQ1 features isolated differential daisy-chain communication with optional ring topology support. This architecture allows reliable communication across multiple battery monitoring devices while reducing wiring complexity in large battery systems. Additional flexibility is provided through integrated GPIO and auxiliary measurement channels, enabling connection of external thermistors and system monitoring components. Support for UART and SPI-based communication interfaces simplifies integration with host controllers and battery management processors. Packaged in a compact 64-pin HTQFP package, the BQ79616PAPRQ1 is widely used in electric vehicles, hybrid electric vehicles, battery energy storage systems, industrial battery packs, high-voltage power systems, automotive battery management systems, renewable energy storage platforms, and advanced lithium-ion battery monitoring applications, where precise cell measurement, balancing, and functional safety compliance are critical. |
| Product Group | Power Switch |
| MOQ | 1000 pcs |
| SPQ | 1000 pcs |
| Figure/Case | HTQFP-64 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
BQ79616PAPRQ1
BQ79616PAPRQ1
