AD5546BRUZ

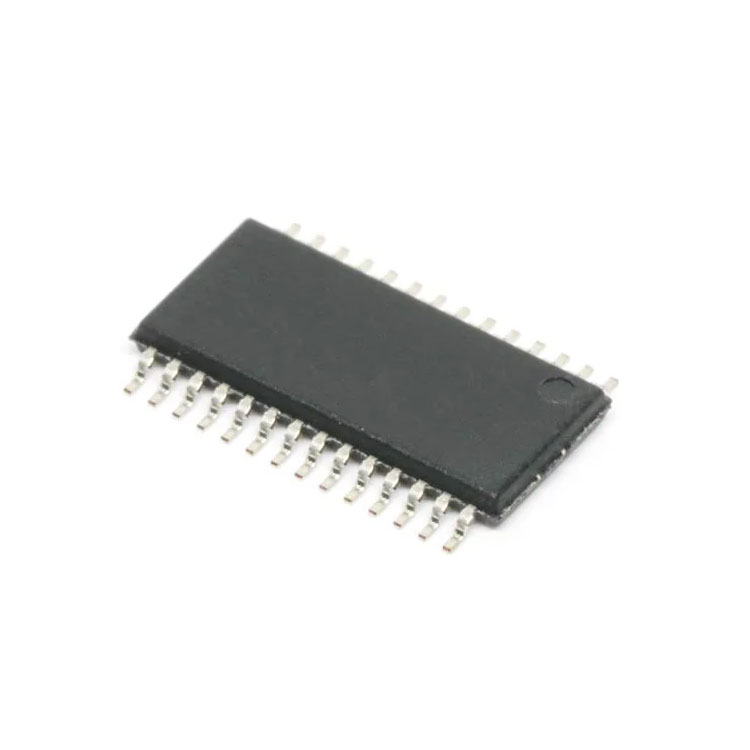

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | AD5546BRUZ |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The AD5546BRUZ is a precision 16-bit digital-to-analog converter (DAC) from Analog Devices, designed for high-accuracy signal generation in industrial and instrumentation applications. It features a current-output architecture based on an R-2R ladder, delivering excellent linearity and low noise performance. This device operates from a single supply voltage range of 2.7V to 5.5V and supports a high-speed parallel interface, enabling fast data updates and integration with microcontrollers, DSPs, and FPGA-based systems. The DAC provides a typical settling time of approximately 500 ns, making it suitable for high-speed applications. The AD5546BRUZ includes an integrated feedback resistor (RFB), simplifying current-to-voltage conversion when used with an external operational amplifier. Its multiplying DAC capability allows flexible output ranges, including unipolar and bipolar configurations (e.g., ±10V output when properly configured). With ±1 LSB DNL and ±2 LSB INL performance, the device ensures high precision and stability across its operating temperature range of -40°C to +125°C. Housed in a compact TSSOP-28 surface-mount package, the AD5546BRUZ is widely used in applications such as automatic test equipment (ATE), industrial automation, programmable gain control, waveform generation, and precision instrumentation where accurate and fast analog output is required. |
| Product Group | DAC |
| MOQ | 50 pcs |
| SPQ | 50 pcs |
| Figure/Case | 28-TSSOP |
| Package | TUBE Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
