MAX232ACPE+

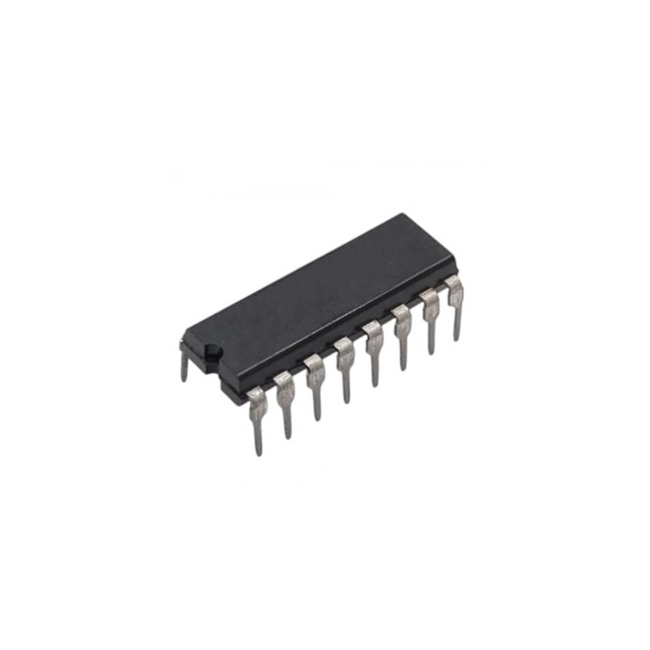

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | MAX232ACPE+ |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The MAX232ACPE+ is a widely used and reliable RS-232 transceiver from Analog Devices / Maxim Integrated, designed to provide seamless communication between TTL/CMOS logic levels and RS-232 serial interfaces. It integrates two drivers and two receivers, enabling full-duplex serial communication in embedded and industrial systems. This device operates from a single 5V supply and includes an internal charge pump voltage converter, which generates the required positive and negative voltages for RS-232 signaling without the need for dual power supplies. This significantly simplifies circuit design and reduces external component requirements. The MAX232ACPE+ supports data rates up to approximately 120kbps and ensures reliable communication over standard RS-232 cable lengths. It is fully compliant with EIA/TIA-232 standards, making it compatible with a wide range of legacy and modern serial communication equipment. Designed for robust operation, the device provides ±30V input voltage tolerance on receiver inputs, enhancing protection against electrical stress and ensuring stable operation in industrial environments. It also offers low power consumption and high noise immunity for dependable data transmission. The IC requires only a few external capacitors for the charge pump operation, simplifying PCB layout and reducing overall system cost. Its internal architecture ensures consistent signal levels and reliable conversion between logic and RS-232 voltage domains. Encapsulated in a standard 16-pin PDIP through-hole package, the MAX232ACPE+ is ideal for prototyping, development boards, and applications where through-hole mounting is preferred. The MAX232ACPE+ is commonly used in serial communication interfaces, industrial control systems, embedded systems, PC communication ports, modems, and instrumentation equipment, where dependable RS-232 level shifting is required. |
| Product Group | RS232 Transceiver |
| MOQ | 750 pcs |
| SPQ | 25 pcs |
| Figure/Case | PDIP-16 |
| Package | TUBE Pack |
