MAX3098EBCSE

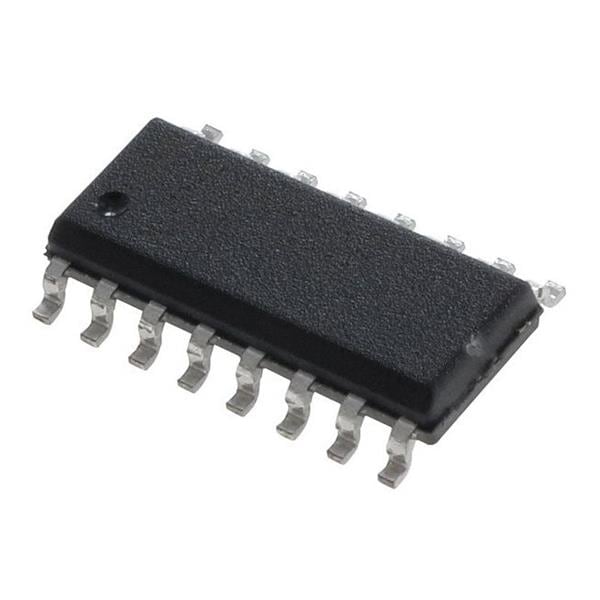

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | MAX3098EBCSE |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The MAX3098EBCSE+ is a robust full-duplex RS-485/RS-422 transceiver from Analog Devices (Maxim Integrated), designed for reliable high-speed differential data communication in industrial, automation, instrumentation, and networking applications. It combines low-power operation, high ESD immunity, and excellent noise tolerance to ensure dependable performance in electrically harsh environments. This device supports full-duplex communication, allowing simultaneous data transmission and reception over differential bus networks. Its balanced driver and receiver architecture provides excellent signal integrity for long-distance communication links and multidrop network topologies. The MAX3098EBCSE+ incorporates advanced protection features including ±15kV ESD protection on communication pins, helping safeguard connected equipment from electrostatic discharge events and improving system reliability. The transceiver is optimized for operation in industrial environments where transient disturbances are common. The device supports data rates up to 10Mbps, making it suitable for high-speed serial communication systems requiring reliable differential signaling. Its fail-safe receiver design ensures a defined logic state when bus inputs are open, shorted, or idle, reducing communication errors and simplifying system implementation. Operating from a single 5V supply, the MAX3098EBCSE+ delivers low power consumption while maintaining excellent communication performance. The transceiver also features low-current shutdown functionality for power-sensitive applications. Packaged in a compact 16-pin narrow SOIC surface-mount package, the device enables efficient PCB layouts and supports automated assembly processes for high-volume manufacturing. The MAX3098EBCSE+ is widely used in industrial automation systems, PLCs, building control networks, process control equipment, data acquisition systems, security systems, factory communication networks, instrumentation platforms, and RS-485/RS-422 communication interfaces, where reliable high-speed differential communication and strong ESD protection are required. |
| Product Group | RS485 Transceiver |
| MOQ | 1000 pcs |
| SPQ | 50 pcs |
| Figure/Case | 16-SOIC |
| Package | TUBE Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
MAX3098EBCSE
