CY8C4025AZI-S413

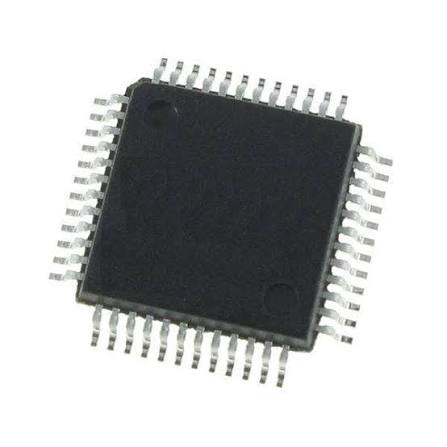

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | CY8C4025AZI-S413 |
|---|---|
| Manufacturer |
 Cypress Semiconductor
|
| Description | The CY8C4025AZI-S413 is a versatile 32-bit PSoC 4 4000S microcontroller from Infineon Technologies, originally developed by Cypress Semiconductor. Featuring an ARM Cortex-M0+ processor, integrated CapSense capacitive touch technology, and LCD control capabilities, the device is designed for embedded control, human-machine interfaces, and consumer electronics applications. Operating at up to 24MHz, the CY8C4025AZI-S413 integrates 32KB Flash program memory and 4KB SRAM, providing resources for embedded firmware, real-time control, and peripheral management. A key feature is the integrated CapSense capacitive sensing system, enabling touch-sensitive buttons, sliders, and proximity-based user interfaces without mechanical switches. The device also supports direct LCD drive, making it suitable for appliances, digital control panels, and embedded display applications. The microcontroller includes 36 programmable I/O pins, 16 Smart I/O capabilities, a 10-bit ADC, two analog comparators, and five Timer/Counter/PWM blocks. These peripherals support analog measurement, sensor interfacing, timing, and PWM-based control. Two configurable Serial Communication Blocks (SCB) provide support for I2C, SPI, and UART communication, enabling connectivity with external sensors, displays, memory devices, and embedded controllers. The CY8C4025AZI-S413 operates from a 1.71V to 5.5V supply voltage and supports an industrial temperature range of -40°C to +85°C. It is supplied in a 48-pin TQFP surface-mount package with a 7 × 7mm body and 0.50mm pin pitch. Typical applications include capacitive touch control panels, home appliances, smart lighting, thermostats, industrial user interfaces, LCD display controllers, sensor monitoring systems, consumer electronics, and general-purpose embedded control equipment. |
| Product Group | Microcontroller |
| MOQ | 2500 pcs |
| SPQ | 2500 pcs |
| Figure/Case | TQFP-48 |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
CY8C4025AZI-S413
