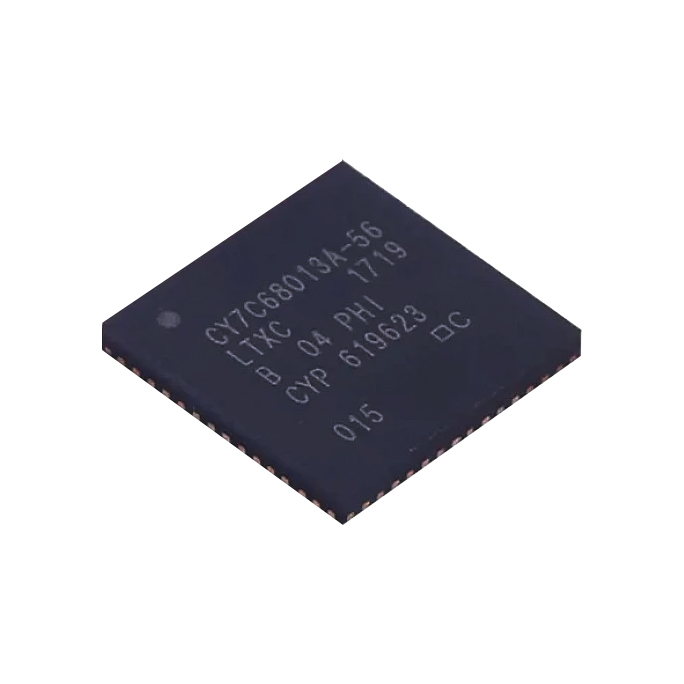

CY7C68013A-56LTXC
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | CY7C68013A-56LTXC |
|---|---|
| Manufacturer |
 Cypress Semiconductor
|
| Description | The CY7C68013A-56LTXC is a high-performance EZ-USB FX2LP USB 2.0 peripheral controller, originally developed by Cypress Semiconductor and now part of the Infineon Technologies product portfolio. It combines an enhanced 8051 microcontroller, an integrated USB transceiver, and programmable data interfaces for high-speed embedded USB applications. Supporting USB 2.0 high-speed communication at up to 480Mbps, the device incorporates a USB serial interface engine, programmable endpoints, and flexible FIFO buffering. Its 8-bit enhanced 8051 CPU operates at up to 48MHz and includes 16KB internal code/data RAM. The ROMless architecture supports firmware loading through USB or an external EEPROM. The CY7C68013A-56LTXC features a General Programmable Interface (GPIF) and a programmable Slave FIFO interface, enabling efficient data transfer between USB and external devices such as FPGAs, DSPs, imaging sensors, and embedded controllers. The 56-pin QFN variant provides 24 programmable I/O pins and an integrated I2C interface for external configuration memory and peripheral communication. Unlike the larger 100-pin and 128-pin FX2LP variants, the 56-pin version does not support UART serial debugging or an external 8051 address/data bus. The device operates from a 3.0V to 3.6V supply voltage and supports a commercial operating temperature range of 0°C to +70°C. It is supplied in a compact 56-pin QFN surface-mount package with an 8 × 8mm body and an exposed thermal pad. Typical applications include USB data acquisition systems, industrial cameras, FPGA-to-USB interfaces, digital instrumentation, imaging equipment, USB peripheral adapters, and high-speed embedded communication systems. Lifecycle Notice: The CY7C68013A-56LTXC has been discontinued and is primarily suitable for maintenance, repair, and legacy equipment support, subject to remaining stock availability. |
| Product Group | Microcontroller |
| MOQ | 260 pcs |
| SPQ | 260 pcs |
| Figure/Case | QFN-56 |
| Package | TRAY Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
CY7C68013A-56LTXC
CY7C68013A-56LTXC
