ADM1278-1ACPZ-RL

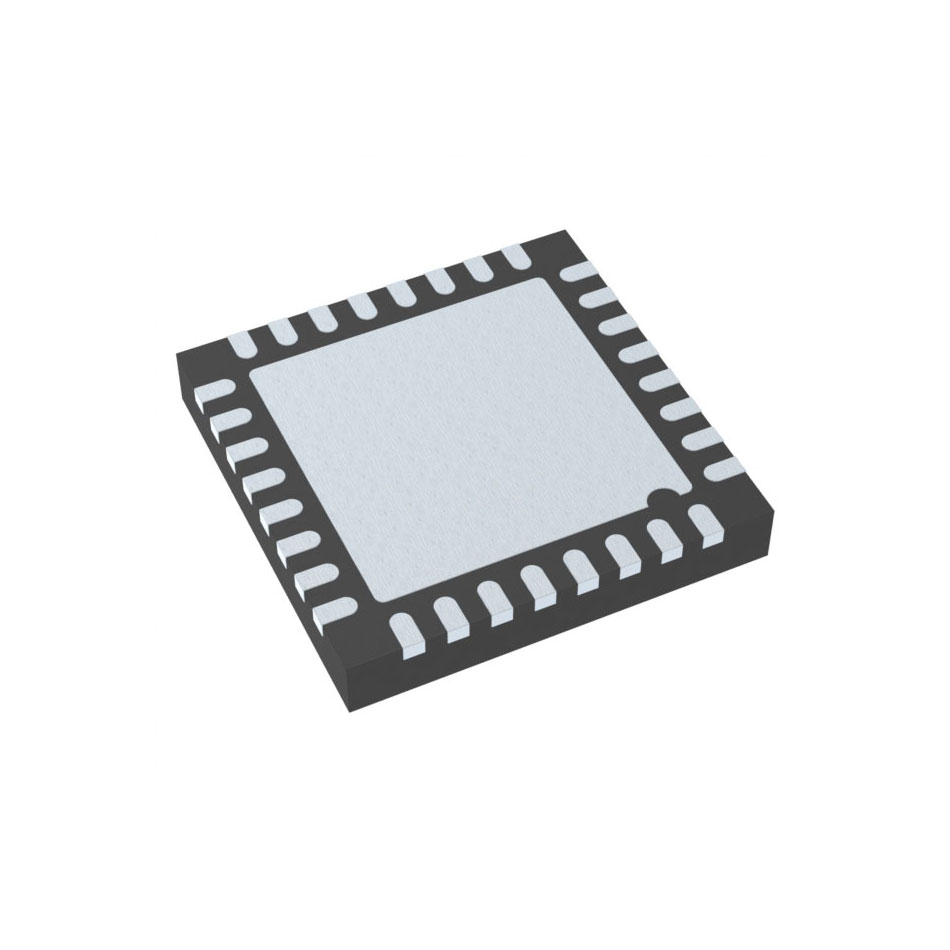

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADM1278-1ACPZ-RL |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description | The ADM1278-1ACPZ-RL is an advanced hot swap controller and digital power monitoring IC from Analog Devices, designed to provide safe board insertion, inrush current control, and comprehensive power monitoring in high-availability electronic systems. It combines precision measurement capabilities with robust protection functions, making it ideal for telecommunications, networking, industrial, and server applications. This device supports operating voltages up to 80V and enables controlled startup of power rails by regulating inrush current during live insertion events. Its integrated hot swap functionality helps protect connectors, backplanes, and downstream circuitry from damaging current surges. The ADM1278-1ACPZ-RL incorporates high-accuracy monitoring of voltage, current, power, and accumulated energy, allowing system designers to implement detailed power management and diagnostic functions. Measured data can be accessed through a PMBus-compatible digital interface, simplifying system monitoring and remote management. Integrated protection features include overcurrent protection, undervoltage detection, overvoltage monitoring, power limiting, fault management, and programmable shutdown control. These capabilities improve system reliability and help prevent damage during abnormal operating conditions. The device supports external N-channel MOSFET control and offers programmable fault response settings, allowing flexible implementation across a wide range of power architectures. Its precision telemetry functions make it particularly suitable for intelligent power distribution and energy-aware system designs. Packaged in a compact 32-pin LFCSP package, the ADM1278-1ACPZ-RL provides a space-efficient solution for high-density circuit boards while maintaining excellent electrical and thermal performance. The ADM1278-1ACPZ-RL is widely used in telecommunications equipment, enterprise servers, storage systems, industrial automation platforms, networking infrastructure, intelligent power distribution units, and high-reliability embedded systems, where controlled power sequencing, fault protection, and detailed power monitoring are essential. |
| Product Group | Power Switch |
| MOQ | 1500 pcs |
| SPQ | 1500 pcs |
| Figure/Case | 32-LFCSP |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
