ADUM3200ARZ-RL7
The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | ADUM3200ARZ-RL7 |
|---|---|
| Manufacturer |
 Analog Devices
|
| Description |

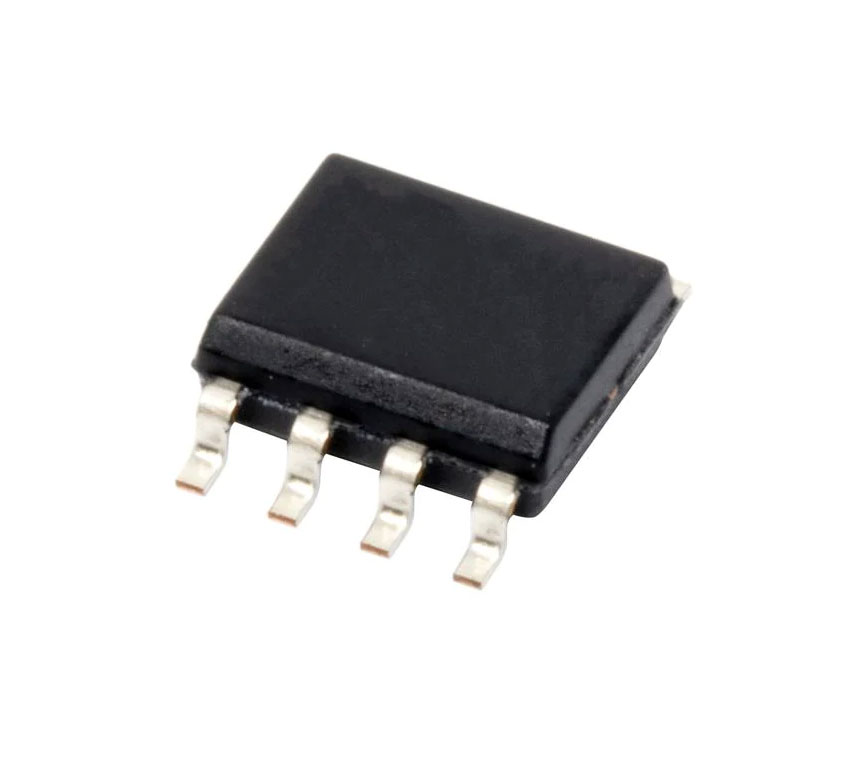

The ADUM3200ARZ-RL7 is a high-performance 2-channel 2.5kVrms digital isolator IC manufactured by Analog Devices (ADI). Based on proprietary iCoupler magnetic isolation technology, this device provides reliable galvanic isolation between digital circuits without conventional optocouplers. It features two independent unidirectional channels operating in the same direction, making it suitable for isolated digital signal transmission and industrial electronic interfaces. The Analog Devices ADUM3200ARZ-RL7 supports a 1Mbps maximum data rate, 2500Vrms isolation voltage, and independent 3.0V to 5.5V supply voltages on both sides of the isolation barrier. Key electrical specifications include 150ns maximum propagation delay at 5V, 40ns maximum pulse width distortion, 25kV/µs minimum common-mode transient immunity (CMTI), and 10ns typical rise and fall times. The operating temperature range is -40°C to +105°C. The ADUM3200 dual-channel digital isolator features low-power CMOS operation, high noise immunity, and compatibility with 3.3V and 5V logic systems. Its two forward-direction isolation channels enable reliable transmission of digital control and communication signals across separate ground domains. Typical applications include microcontroller isolation, digital output isolation, industrial automation, PLC interfaces, sensor systems, and isolated control circuits. The ADUM3200ARZ-RL7 is supplied in an 8-pin narrow SOIC surface-mount package with a 3.90mm nominal body width and 1.27mm pin pitch. The RoHS-compliant device supports automated SMT assembly and is supplied in standard 1000-piece 7-inch tape-and-reel packaging. The corresponding ADUM3200ARZ version is supplied in tube packaging. The Analog Devices ADUM3200ARZ-RL7 1Mbps 2500Vrms digital isolator is suitable for industrial electronics, embedded control systems, microcontroller interfaces, isolated digital communication, industrial instrumentation, motor control electronics, power supply control circuits, data acquisition systems, and general-purpose galvanic isolation applications. |
| Product Group | Isolated Amplifier |
| MOQ | 1000 pcs |
| SPQ | 1000 pcs |
| Figure/Case | 8-SOIC |
| Package | T&R Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
