TCJA106M025R0150E

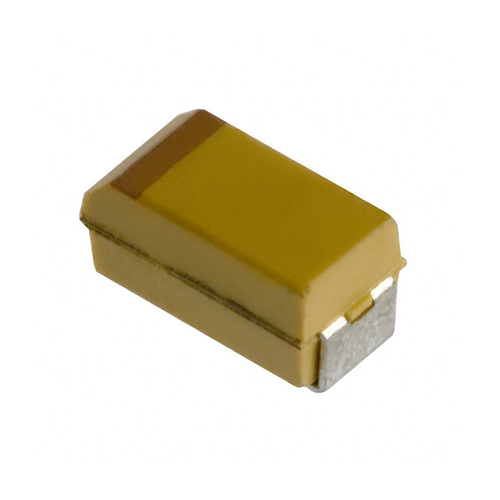

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | TCJA106M025R0150E |
|---|---|
| Manufacturer |
|
| Description |
The TCJA106M025R0150E is a high-performance 10µF 25V low-ESR tantalum polymer capacitor manufactured by KYOCERA AVX. Part of the TCJ series, this surface-mount capacitor features a conductive polymer solid electrolyte, ±20% capacitance tolerance, and a compact 1206 (3216 Metric) A-case package, providing reliable capacitive performance for power supply filtering and electronic decoupling applications. The TCJA106M025R0150E offers a nominal capacitance of 10µF (10000nF), 25V DC rated voltage, and 150mΩ maximum ESR at 100kHz. Additional electrical specifications include 25µA leakage current, 6% dissipation factor, and 800mA ripple current capability. The operating temperature range is -55°C to +105°C, with a specified endurance rating of 2000 hours at +105°C. The KYOCERA AVX TCJ conductive polymer technology delivers low equivalent series resistance, high ripple current capability, and improved electrical performance compared with conventional manganese dioxide tantalum capacitors. The series incorporates surge current testing and is suitable for DC-DC converters, switching power supplies (SMPS), voltage regulators, DC filtering, power rail decoupling, and low-impedance power management circuits. The capacitor features a compact 1206 (3216 Metric) surface-mount package with nominal dimensions of 3.20 × 1.60 × 1.60mm. Its polarized molded construction supports automated SMT assembly and lead-free reflow soldering. The component is RoHS compliant and supplied in standard 2000-piece tape-and-reel packaging. The KYOCERA AVX TCJA106M025R0150E 10µF 25V 150mΩ tantalum polymer capacitor is suitable for industrial electronics, telecommunications equipment, networking hardware, embedded systems, notebook computers, consumer electronics, voltage stabilization, power supply filtering, high-ripple-current circuits, and compact SMD power management applications. |
| Product Group | Tantalum Capacitor |
| MOQ | 2000 pcs |
| SPQ | 2000 pcs |
| Figure/Case | 1206 |
| Package | T&R Pack |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
| Send RFQ | sales@signalhk.com |
Request quotation for
TCJA106M025R0150E
TCJA106M025R0150E
