CD4093BE

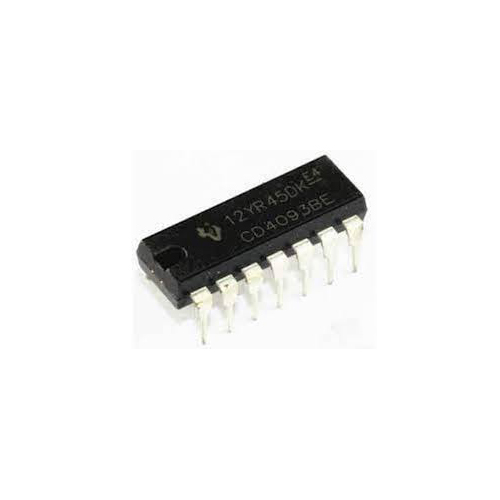

The image is for illustrative purposes only; please refer to the product data sheet for precise specifications.
GET QUOTE NOW!
| Part Number | CD4093BE |
|---|---|
| Manufacturer |
 Texas Instruments
|
| Description | The CD4093BE is a versatile CMOS quad 2-input NAND gate with Schmitt-trigger inputs from Texas Instruments, designed for digital logic, signal conditioning, oscillator generation, and waveform shaping applications. By combining four independent NAND gates with Schmitt-trigger input circuitry, the device provides excellent noise immunity and reliable switching performance in both digital and mixed-signal systems. Each of the four logic gates incorporates Schmitt-trigger inputs, introducing input hysteresis that enables clean switching even when processing slow-rising, slow-falling, or noisy input signals. This makes the CD4093BE particularly effective for switch debouncing, waveform restoration, and sensor signal conditioning. The device operates across a wide 3V to 18V supply voltage range, providing exceptional flexibility for low-voltage battery-powered equipment as well as industrial control systems. Its CMOS architecture ensures extremely low static power consumption while maintaining reliable logic performance. The CD4093BE supports operating frequencies up to several megahertz depending on the supply voltage and load conditions. Typical propagation delay is approximately 130ns at 15V, enabling efficient operation in timing circuits, pulse generators, oscillators, and digital control applications. With integrated Schmitt-trigger functionality, the device can be used to implement RC oscillators, pulse shaping circuits, monostable and astable multivibrators, clock generators, debounce circuits, and timing controllers using only a few external passive components. Its versatile logic architecture simplifies circuit design while reducing overall component count. Designed using proven CMOS technology, the CD4093BE features excellent noise margins, low quiescent current, and high input impedance, making it suitable for operation in electrically noisy environments. The device also offers compatibility with other members of the CD4000 CMOS logic family. Packaged in a standard 14-pin PDIP package, the CD4093BE is easy to integrate into prototype boards, educational projects, industrial electronics, and through-hole PCB designs. The CD4093BE is widely used in digital logic systems, oscillator circuits, clock generators, switch debounce circuits, waveform shaping, timing controllers, industrial automation equipment, alarm systems, instrumentation, sensor interfaces, motor control circuits, embedded electronics, and general-purpose CMOS logic applications. |
| Product Group | Logic IC |
| MOQ | 2500 pcs |
| SPQ | 25 pcs |
| Figure/Case | 14-PDIP |
| Package | TUBE Pack |
 PDF Datasheet | |
| Ship From | Hong Kong |
| Shipment Way | DHL / Fedex / TNT / UPS / Others |
| Delivery Term | Ex-Works |
