All Products Varistor

B72540E0300K062 / The B72540E0300K062 is a multilayer varistor (MLV) from EPCOS/TDK, designed for surface-mount applications in a 2220 (5750 metric) package. It offers a nominal varistor voltage of 47 V, with a tolerance range between 42.3 V and 51.7 V. The device can handle maximum continuous voltages of 30 V AC and 38 V DC, and it clamps transient voltages at up to 77 V. It supports a peak surge current of 1.2 kA (8/20 μs waveform) and has an energy absorption capacity of 12 J. With a typical capacitance of 4000 pF at 1 MHz, it is suitable for high-frequency applications. The varistor operates over a temperature range from -55°C to +125°C and complies with AEC-Q200 standards, making it ideal for automotive and other high-reliability applications .
B72540E0300K062

Description: The B72540E0300K062 is a multilayer varistor (MLV) from EPCOS/TDK, designed for surface-mo ...
Package: T&R | MOQ: 5000 | MPQ: 1000

B72500E0140K060 / The B72500E0140K060 is a multilayer varistor (MLV) from EPCOS/TDK, designed for surface-mount applications in a compact 0603 (1.6 mm × 0.8 mm) package. It offers a nominal varistor voltage of 22 V, with a tolerance range between 19.8 V and 24.2 V. The device can handle maximum continuous voltages of 14 V AC and 18 V DC, and it clamps transient voltages at up to 40 V. It supports a peak surge current of 30 A (8/20 μs waveform) and has an energy absorption capacity of 0.2 J. With a typical capacitance of 100 pF at 1 MHz, it is suitable for high-frequency applications. The varistor operates over a wide temperature range from -55°C to +150°C and complies with AEC-Q200 standards, making it ideal for automotive and other high-reliability applications .
B72500E0140K060

Description: The B72500E0140K060 is a multilayer varistor (MLV) from EPCOS/TDK, designed for surface-mo ...
Package: T&R | MOQ: 8000 | MPQ: 4000

431KD10-O / The 431KD10-O varistor is a metal oxide varistor (MOV) designed to protect electronic circuits from voltage surges and transient spikes. With a disc diameter of 10 mm and a clamping voltage tailored for 431V applications, it provides reliable overvoltage protection in a compact form factor. The
431KD10-O

Description: The 431KD10-O varistor is a metal oxide varistor (MOV) designed to protect electronic circ ...
Package: BULK | MOQ: 1000 | MPQ: 500

VC0603K300R020 / The KEMET VC0603K300R020 is a compact, surface-mount multilayer varistor (MLV) designed to protect sensitive electronic circuits from transient voltage events such as electrostatic discharge (ESD), lightning-induced surges, and inductive load switching. Housed in a 0603 (1608 metric) package, this varistor is ideal for space-constrained applications in automotive, industrial, and consumer electronics. Voltage Ratings: Maximum DC voltage of 26 V and AC voltage of 20 V. Varistor Voltage: Typical varistor voltage of 33 V, with a minimum of 29.7 V and a maximum of 36.3 V. Clamping Voltage: Clamps transient voltages at 54 V when subjected to a 1 A current pulse (8/20 µs waveform). Surge Current Capability: Can withstand peak surge currents up to 30 A (8/20 µs waveform). Energy Absorption: Capable of absorbing up to 0.3 J of energy (10/1000 µs waveform). Capacitance: Exhibits a capacitance of 175 pF at 1 kHz, suitable for high-speed data line protection. Operating Temperature Range: Operates reliably within a temperature range of -55°C to +125°C. Automotive Qualification: Meets AEC-Q200 standards, ensuring suitability for automotive applications.
VC0603K300R020

Description: The KEMET VC0603K300R020 is a compact, surface-mount multilayer varistor (MLV) designed to ...
Package: T&R | MOQ: 3500 | MPQ: 3500

B72210S0271K101 / The EPCOS B72210S0271K101 is a robust metal oxide varistor (MOV) designed to protect electronic circuits from voltage surges and transients. It operates effectively within a wide voltage range, featuring a maximum AC voltage of 275V and a DC voltage of 350V. The varistor voltage typically centers around 430V, with a clamping voltage of approximately 710V. It can handle surge currents up to 2.5kA (8/20µs waveform) and has an energy absorption capacity of 43 joules. The device exhibits a capacitance of 220pF at 1kHz and operates reliably within a temperature range of -40°C to +105°C. Its through-hole disc design, measuring 10mm in diameter, makes it suitable for various applications, including industrial equipment, power supplies, and telecommunications systems.
B72210S0271K101

Description: The EPCOS B72210S0271K101 is a robust metal oxide varistor (MOV) designed to protect elect ...
Package: BULK | MOQ: 1000 | MPQ: 500

B72500D0200A060 / The EPCOS B72500D0200A060 is a compact, surface-mount ceramic transient voltage suppressor (TVS) varistor designed to protect sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage spikes. It features a bidirectional protection capability, making it suitable for safeguarding both positive and negative voltage transients. With a maximum DC operating voltage of 22V and a clamping voltage of 50V at 1A, it can handle peak surge currents up to 30A. The device exhibits a typical capacitance of 56pF at 1kHz, ensuring minimal signal distortion in high-speed data lines. Its fast response time of less than 0.5 nanoseconds and low leakage current of 1μA at 5.6V enhance its effectiveness in transient suppression. The B72500D0200A060 complies with IEC 61000-4-2 Level 4 standards, offering robust ESD protection up to ±15kV for air discharge and ±8kV for contact discharge. Encased in a 0603 (1608 metric) package, this RoHS-compliant component is ideal for applications in audio/video interfaces, data input/output protection, and other sensitive electronic circuits.
B72500D0200A060

Description: The EPCOS B72500D0200A060 is a compact, surface-mount ceramic transient voltage suppressor ...
Package: T&R | MOQ: 4000 | MPQ: 4000

EZJ-Z0V120JA / The Panasonic EZJ-Z0V120JA is a surface-mount multilayer varistor designed for electrostatic discharge (ESD) protection in high-speed signal lines and DC voltage lines. It features a varistor voltage of 12V, a maximum surge current rating of 10A, and operates effectively within a temperature range of -40°C to 85°C. Its compact 0402 (1005 Metric) package ensures compatibility with various electronic applications.
EZJ-Z0V120JA

Description: The Panasonic EZJ-Z0V120JA is a surface-mount multilayer varistor designed for electrostat ...
Package: T&R | MOQ: 10000 | MPQ: 10000

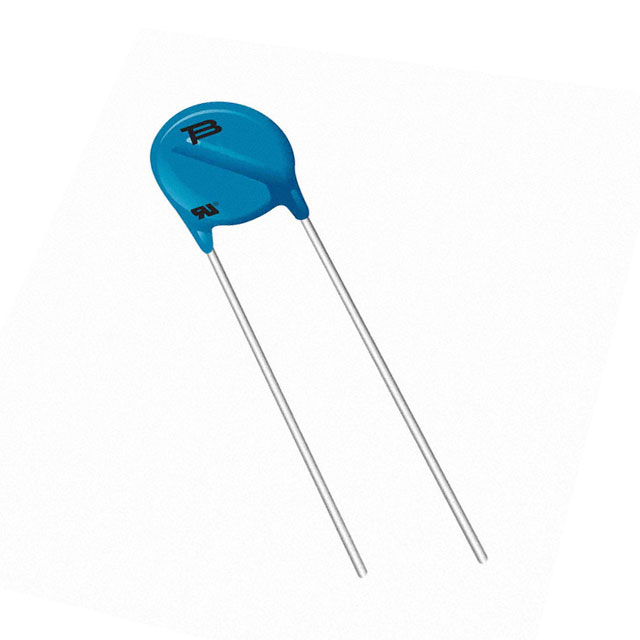

MOV-07D470KTR / The MOV-07D470KTR is a Metal Oxide Varistor (MOV) manufactured by Bourns Inc., designed to protect electronic circuits from transient voltage surges by clamping excessive voltages to safe levels. This varistor is suitable for surge protection in various applications, including power supplies, power systems, line voltage protection, telecommunications, and appliances.
MOV-07D470KTR

Description: The MOV-07D470KTR is a Metal Oxide Varistor (MOV) manufactured by Bourns Inc., designed to ...
Package: BULK | MOQ: 2000 | MPQ: 2000

B72207S0271K111 / The B72207S0271K111 is a varistor manufactured by EPCOS - TDK Electronics, designed to protect electronic circuits from voltage surges by clamping transient voltages to safe levels. Varistor Voltage: 430 V (typical), Maximum AC Voltage: 275V, Maximum DC Voltage: 350V, Surge Current Capacity: 1.2kA, Energy Absorption: 21J, Capacitance at 1 kHz: 110pF, Operating Temperature Range: -40°C to +105°C, Package: 7 mm disc with through-hole mounting
B72207S0271K111

Description: The B72207S0271K111 is a varistor manufactured by EPCOS - TDK Electronics, designed to pro ...
Package: BULK | MOQ: 1000 | MPQ: 1000
