All Products TVS

MAX3202EETT+T / The MAX3202EETT+T is a compact and efficient <strong>2-channel low-capacitance ESD protection device</strong> developed by <strong>Analog Devices</strong>, designed to safeguard high-speed data lines from electrostatic discharge and transient voltage events. It integrates a <strong>transient voltage suppressor (TVS) diode array</strong>, providing robust protection while maintaining signal integrity. <br><br>This device offers <strong>low input capacitance</strong>, making it ideal for high-speed communication interfaces such as USB, HDMI, and other sensitive signal lines where minimal signal distortion is critical. It provides protection against <strong>ESD events up to ±15kV (Human Body Model)</strong>, ensuring reliable operation in harsh environments. <br><br>The MAX3202EETT+T is designed to operate with <strong>low clamping voltage</strong>, effectively limiting voltage spikes and protecting downstream components from damage. Its fast response time ensures immediate suppression of transient events. <br><br>With a <strong>compact TDFN-6 surface-mount package</strong>, the device is optimized for space-constrained PCB layouts and modern high-density electronics. It is suitable for automated assembly and high-volume production environments. <br><br>The <strong>MAX3202EETT+T</strong> is widely used in <strong>USB ports, communication interfaces, consumer electronics, portable devices, and industrial systems</strong>, where reliable ESD and surge protection is essential for maintaining system durability and performance.
MAX3202EETT+T

Description: The MAX3202EETT+T is a compact and efficient 2-channel low-capacitance ESD protect ...
Package: T&R | MOQ: 2500 | MPQ: 2500

D5V0L2B3W-7 / ESD Protection: Provides robust protection against ESD events, withstanding up to ±30 kV for both contact and air discharges, in compliance with IEC 61000-4-2 standards. Clamping Voltage: Limits voltage spikes to a maximum of 14 V, safeguarding downstream components. Breakdown Voltage: Minimum breakdown voltage of 6 V, ensuring reliable operation under normal conditions. Reverse Standoff Voltage: Maximum reverse standoff voltage of 5 V, suitable for 5 V systems. Peak Pulse Current: Capable of handling peak pulse currents up to 6 A (8/20 µs waveform), offering substantial protection against transient events. Capacitance: Low capacitance of 20 pF, preserving signal integrity in high-speed data applications.Operating Temperature Range: Operates reliably within a temperature range of -65°C to +150°C, making it suitable for various environmental conditions. RoHS Compliance: Manufactured with environmentally friendly materials, complying with RoHS directives.
D5V0L2B3W-7

Description: ESD Protection: Provides robust protection against ESD events, withstanding up to ±30 kV ...
Package: T&R | MOQ: 3000 | MPQ: 3000

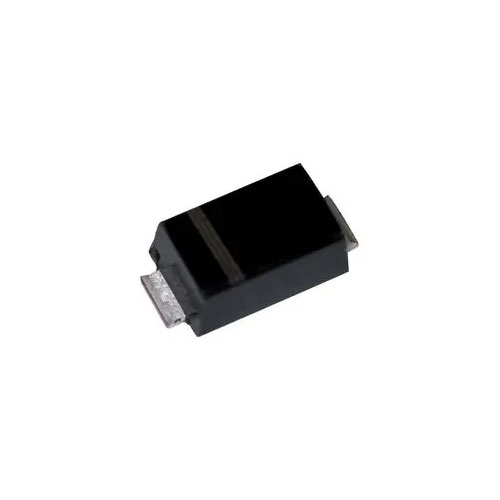

ESD9B5.0ST5G / The ESD9B5.0ST5G is a bidirectional transient voltage suppressor (TVS) diode designed to protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage spikes. It has a reverse standoff voltage of 5V, with a breakdown voltage ranging from 5.8V minimum, and a clamping voltage of 12.5V at a peak pulse current of 12.5A (10/1000µs pulse). The device offers a low capacitance of 15pF at 1MHz, ensuring minimal impact on signal integrity. With a fast response time of less than 1ns, it is ideal for high-speed applications. The ESD9B5.0ST5G operates over a wide temperature range of -55°C to +150°C and is housed in a compact SOD-923 package, making it suitable for portable devices, consumer electronics, and automotive applications.
ESD9B5.0ST5G

Description: The ESD9B5.0ST5G is a bidirectional transient voltage suppressor (TVS) diode designed to p ...
Package: T&R | MOQ: 8000 | MPQ: 8000

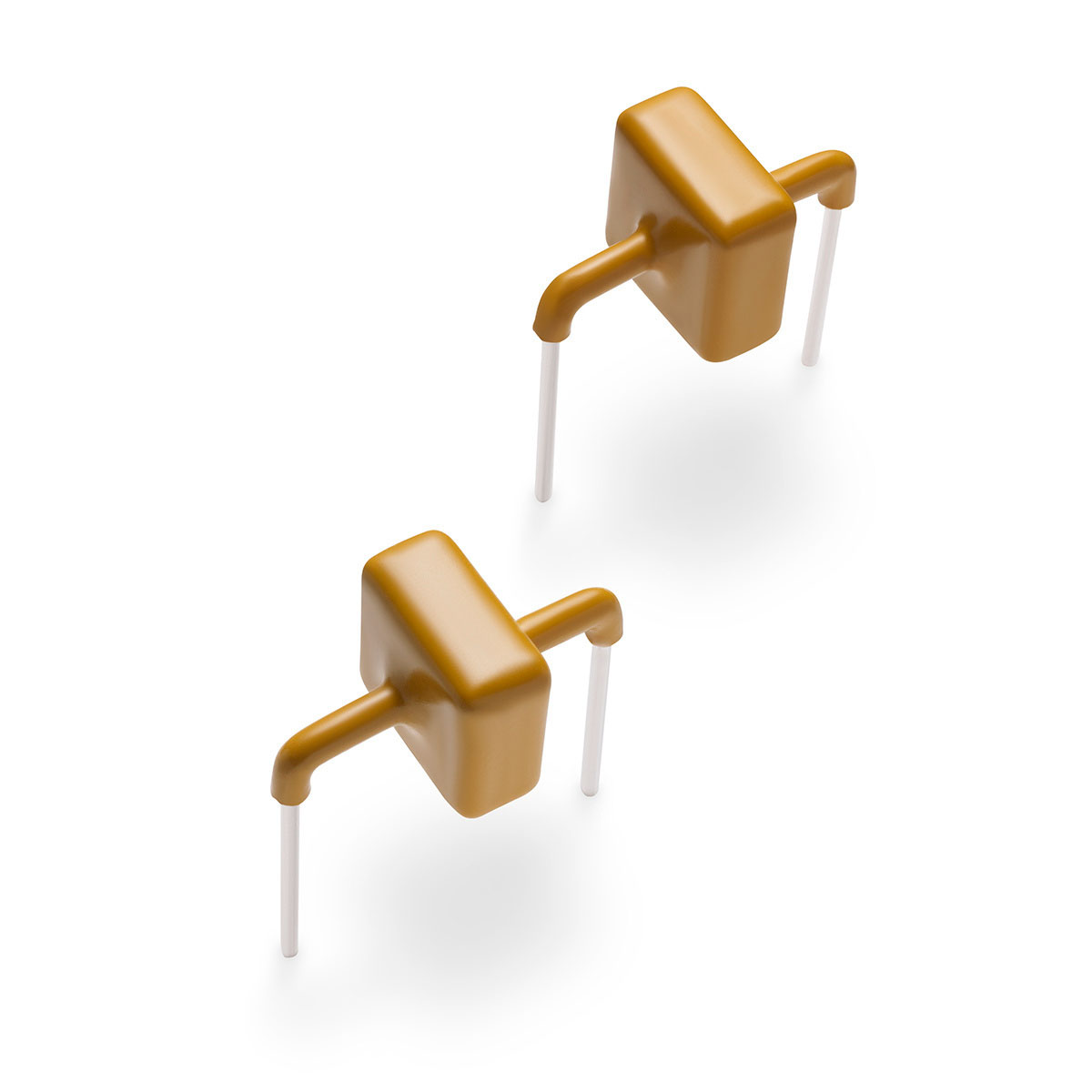

AK3-076C-Y / The AK3-076C-Y is a bidirectional transient voltage suppressor (TVS) diode from Littelfuse, designed to protect electronic circuits from voltage transients caused by electrostatic discharge (ESD) and electrical fast transients (EFT). It features a reverse standoff voltage of 76V, a breakdown voltage ranging from 85V to 95V, and a clamping voltage of 140V at a peak pulse current of 3kA (8/20μs). The diode has a low capacitance of 6,000pF at 10kHz, ensuring minimal signal distortion. It operates over a temperature range of -55°C to +125°C and is housed in an axial package suitable for through-hole mounting. This component is RoHS compliant and recognized under UL 497B as an Isolated Loop Circuit Protector.
AK3-076C-Y

Description: The AK3-076C-Y is a bidirectional transient voltage suppressor (TVS) diode from Littelfuse ...
Package: BULK | MOQ: 560 | MPQ: 56
